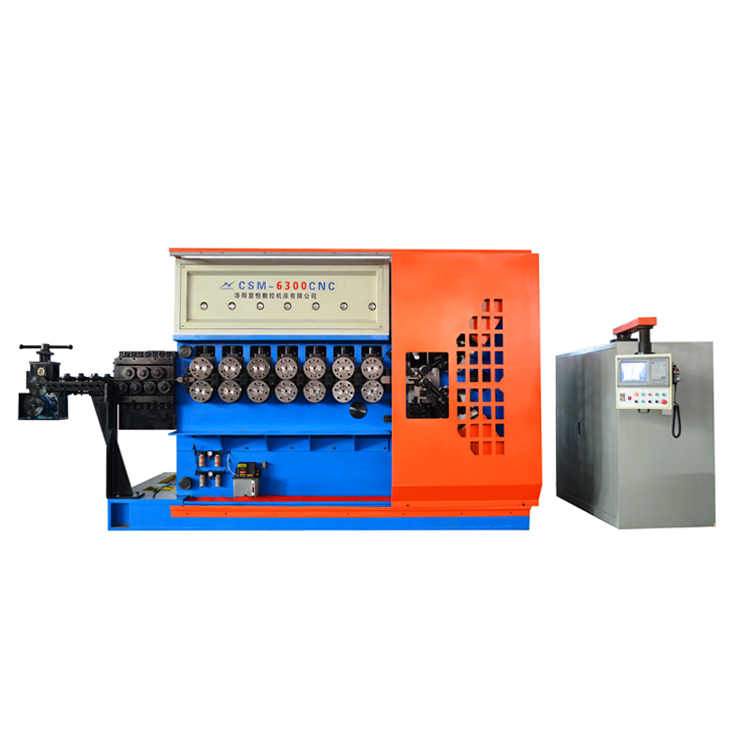

CSM-6300CNC Compression Spring Making Machine
An 6-axis coiling machine with a wire diameter of Φ16 to Φ30 mm and excellent cost-effectiveness.
LEARN MORE
- Product detail

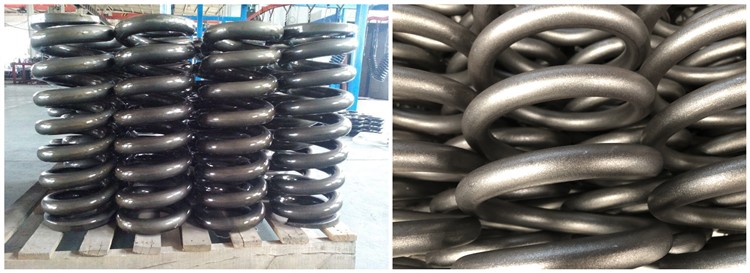

- Range of application
CSM 6300 CNC Compression Spring Making Machine
Specifications of CSM-6300CNC Compression Spring Making Machine
Model No. | CSM-6300CNC |
Wire Dia. | 16-30 mm |
Max. Outside Diameter | 350 mm |
Wire Feeding length | unlimited |
Feeding Wheels | 7 pairs |
Net Weight | 40000Kg |
Machine Dimension | 5730*2840*3315 |
Motor | Sanyo Denki or Yaskawa servo motor in Japan |
Driver part | Sanyo or Yaskawa servo motor driver |
Computer control system | Taiwan hust or Topcontech(TPK) |
Material of the wire | 65Mn,60Si2Mn,1Cr18Ni9 ,55CrSi,50CrV ,51CrV4 and so on |
Advantages of CSM-6300CNC Compression Spring Making Machine
1) The large parts are made of whole steel plate, which increases the strength of the equipment.
2) The gear is machined by Shenyang machine tool factory, the quality is stable and reliable.
3) The transmission part adopts planetary reducer to reduce noise and improve accuracy.
4) Roller compaction, adopt pneumatic hydraulic pressure in place of hydraulic device to increase the pressure of the roller.
