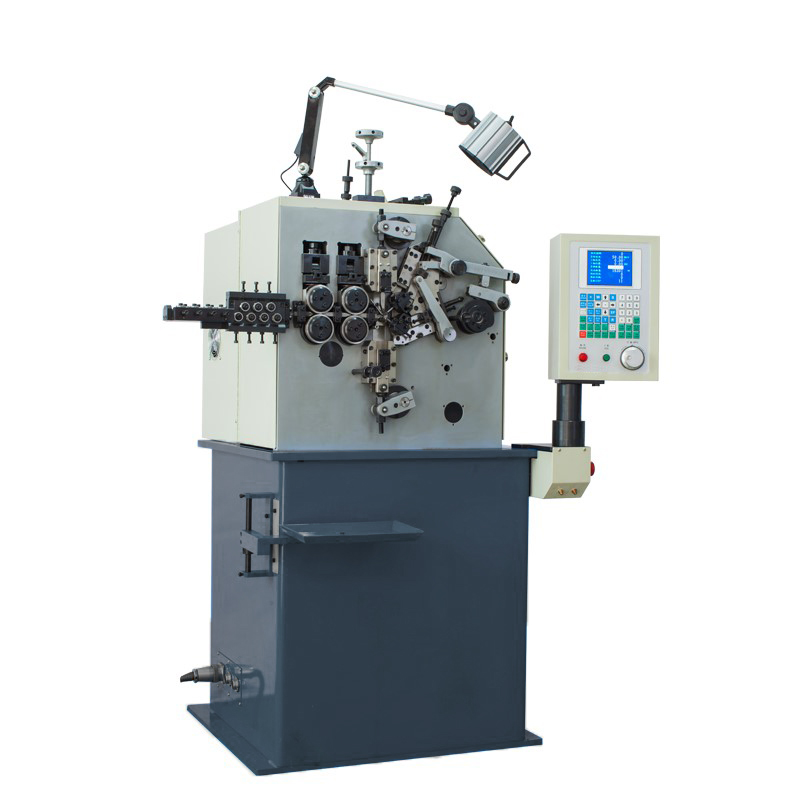

CSM-220CNC 2 axis CNC Spring making machine
Spring wire diameter 0.5~2mm
CSM-220 compression spring machine is a 2-axis spring machine consisting of wire feeding axis and cam axis. the spring machine’s two axes can operate independently of synchronously by command from its computer program.
LEARN MORE
- Product detail
- Range of application
CSM-220 2 axis CNC spring making machine
Specification of CSM220 Compression Spring Machine :
| Model: | CSM-220CNC |
Wire diameter: | φ0.5～2.0mm |
Axes: | 2-3 axis |
Maximum Outside Diameter: | 45mm |
Maximum Feeding Length: | unlimited |
Manufacture Speed: | 0-300pcs/min |
Feed Speed: | 0-155m/min |
Storge capacity: | 0-999 programs |
Wire Feed Servo Motor: | 2.7kw |
Cam Servo Motor: | 2.7kw |
Monitor Display | Chinese & English |
Feeding wheel count | 2 pairs |
Dimensions: | 1100x1100x1600mm |
Machine Weight: | 850kg |
Power AC: | 3P-380v 50/60hz |
Details of CSM-220 Spring Making Machine :
CSM-220 compression spring machine is a 2-axisequipment consisting of wire feeding Y axis and camX axis.each motion from the machine arecommanded by its CNC center.
1.Taiwan controllerand Japanese industrial servomotor, full digital drive, film type button, Chinese andEnglish display, convenient operation.
2.Cams adopt grinding process, with bettersmoothness
3.Computer automatically detect and decelerateservo motor when it is overheating.
4.Production rate can beincreased or decreased atany time running the machine
5.Probe deceleration ratio function adopted.
Product Range:

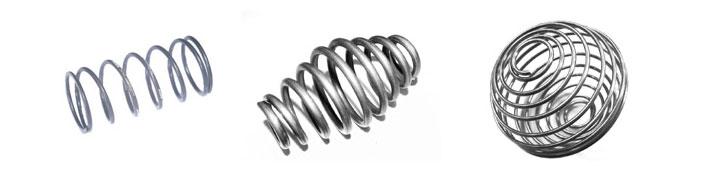

This compression spring machine make various compression springs, wire coil, oil seal springs, battery springs, taper springs, double-taper springs, safe springs, clip spring as well as various simple wire forms.
