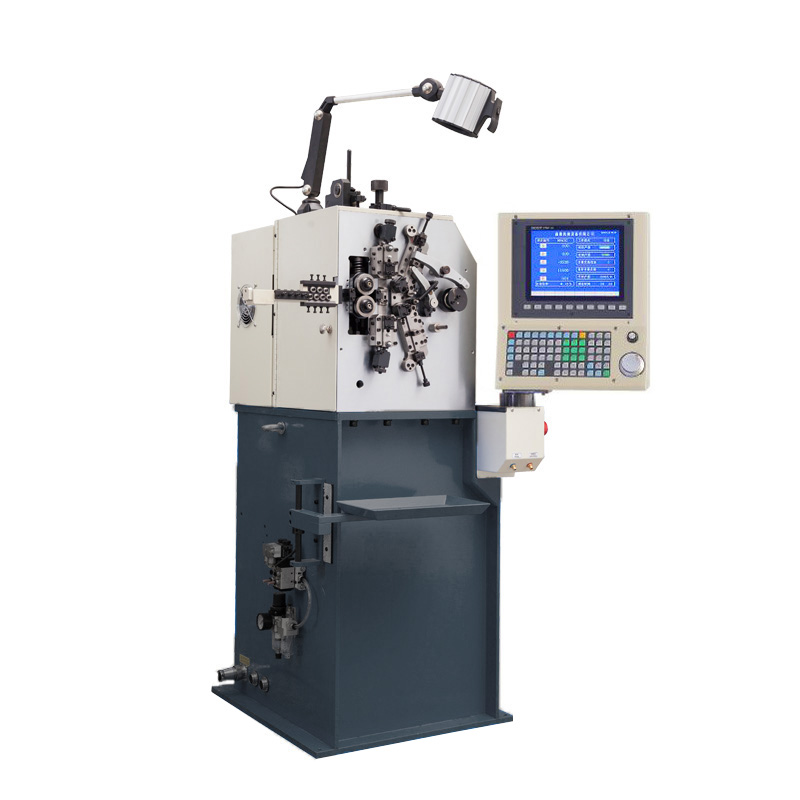

CSM-608CNC 6 axis spring coiler spring making machine
CSM-608CNC 6 axis compression spring machine, wire diameter 0.1~0.8mm
LEARN MORE
- Product detail
- Range of application
Specification of CSM-608CNC Compression Spring Machine :
| Model: | CSM-608CNC |
| Max. O.D: | ￠20mm |
| Production Rate: | 0-800 pcs/min |
| Feed Length: | unlimited |
| Wire Feed Y axis: | 0.75kw |
| Cutter A/B Aixs: | 0.4kw*2 |
| Cam X Axis: | 0.4kw |
| Pitch Z Axis: | 0.4kw |
| Mandrel back-and-forth: | 0.4kw |
| Monitor Display: | Chinese/English |
| Feeding Max. Value: | 99999.99mm |
| Feeding Min.Value: | 0.01mm |
| Memory: | 0-999 programs |
| Machine Dimension(L*W*H) | 1000*700*1350cm |
| Machine Weight: | 500kgs |
| Power: | 220v 3p 50/60Hz/380V 3p 50/60hz |
CSM-608CNC is good combination of speed and precision.With Taiwan Controller and Japanese lndustrial Servo Motor.
It is consisted by one wire feeding axis,one OD axis, two cutter axis, one pitch axis and one mandrel back and forth axis.
It increased spring production output while reducing manual operationdifficulty and saving product set-up time.
1.Independent cutter and mandrel design, able todetect the best coiling position through CNC.
2.Field-bus controller, with quick reaction speed andwell synchronism.
3.Faster conversion ofleft and right hand spring tool setting.
4.Special equipment for making compression springs,torsional springs, tension springs and wireforms.
Product Range:
This compression spring machine make various compression springs, wire coil, oil seal springs, battery springs, taper springs, double-taper springs, safe springs, clip spring as well as simple wire forms.
