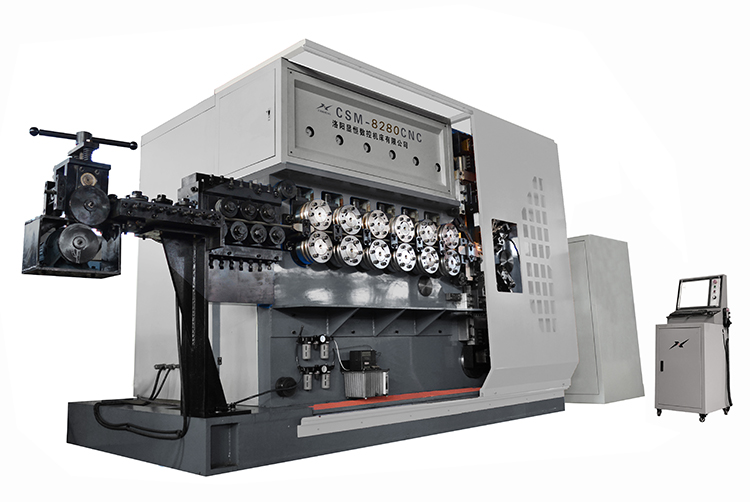

CSM-8280CNC Compression Spring Coiling Machine
The wire feeding part adopts multi-axis control, and any two pairs of wire feeding rollers are controlled by separate servo motors to start and stop, which meets the needs of customers for different wire feeding forces and energy consumption during different production wire diameters and saves production costs.
LEARN MORE
- Product detail
- Range of application

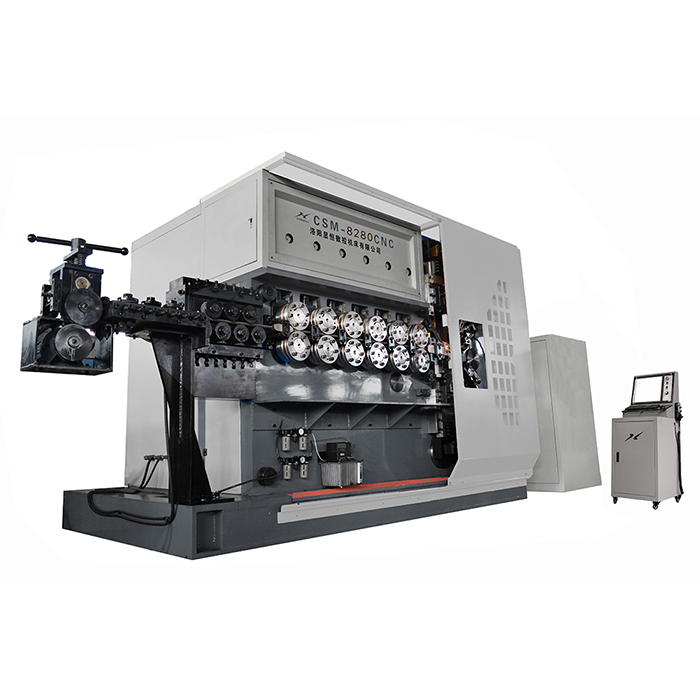

CSM-8280CNC Compression Spring Coiling Machine
Specifications of CSM-8280CNC Compression Spring Coiling Machine
Model No. | CSM-8280CNC |
Wire Dia. | 8-28 mm |
Speed of the Wire Feed | 70 m/min |
Total power of Motors | 195 Kw |
Net Weight | 35000 Kg |
Machine Dimension | 5860mm*2840mm*2550mm |
Motor | Sanyo or Yaskawa servo motor in Japan |
Driver part | Sanyo or Yaskawa servo motor driver |
Computer control system | Arcuchi System |
Material of the wire | 65Mn,60Si2Mn,1Cr18Ni9 ,55CrSi,50CrV ,51CrV4 and so on |
Advantages of CSM-8280CNC Compression Spring Coiling Machine
1)The large parts are made of whole steel plate, which increases the strength of the equipment.
2)The transmission part adopts planetary reducer to reduce noise and improve accuracy.
3)All gears are processed by the national military industrial enterprises, and the gear accuracy reaches 6-level accuracy,the quality is stable and reliable
4)The bearing uses LYC, which is used in the bearing construction of China's high-speed railway.
5)The new version of 8280 incorporates part of the design concept of Wafios, which brings lower energy consumption, higher utilization, and longer service life to the machine.
6)The 12-axis control system can be equipped with additional functions according to user needs, which is convenient for operation.
7)The machine will carry out 48 hours of continuous idling and 1 hour of continuous production before leaving the factory to ensure the stability of all aspects of the machine.
8)The wire feeding part adopts multi-axis control, and any two pairs of wire feeding rollers are controlled by separate servo motors to start and stop, which meets the needs of customers for different wire feeding forces and energy consumption during different production wire diameters and saves production costs.
9)Maintaining the largest cold coil spring model in China for 10 consecutive years, setting a new record.
10)According to customer feedback, after many research and development improvements, we continue to innovate models.
