Product

ZL series Automatic decoiler


  • Automatic decoilers (coil holder) are the necessary auxiliary device for wire rod processing,they can assort all kinds of CNC coiling machine and forming machine.


LEARN MORE

  • Product detail
  • Range of application

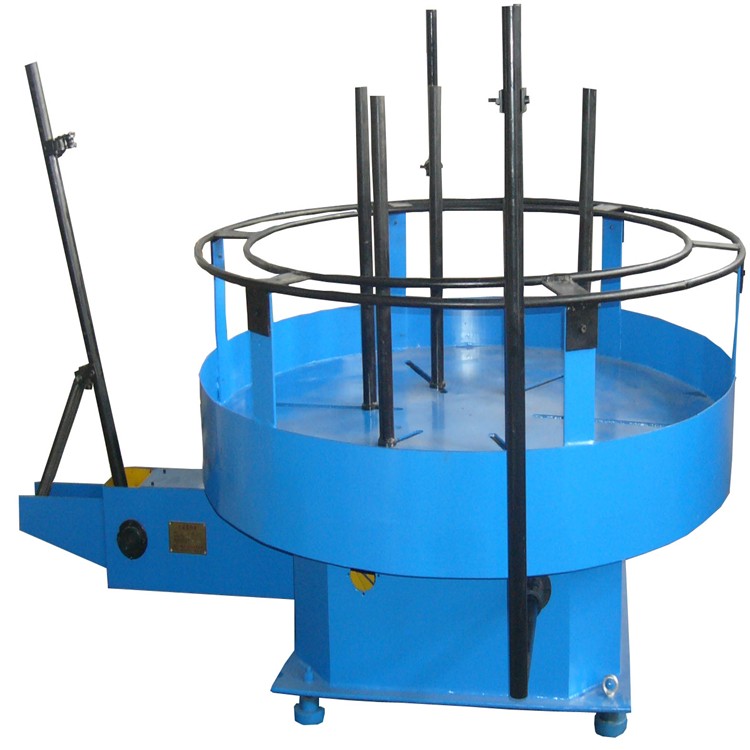

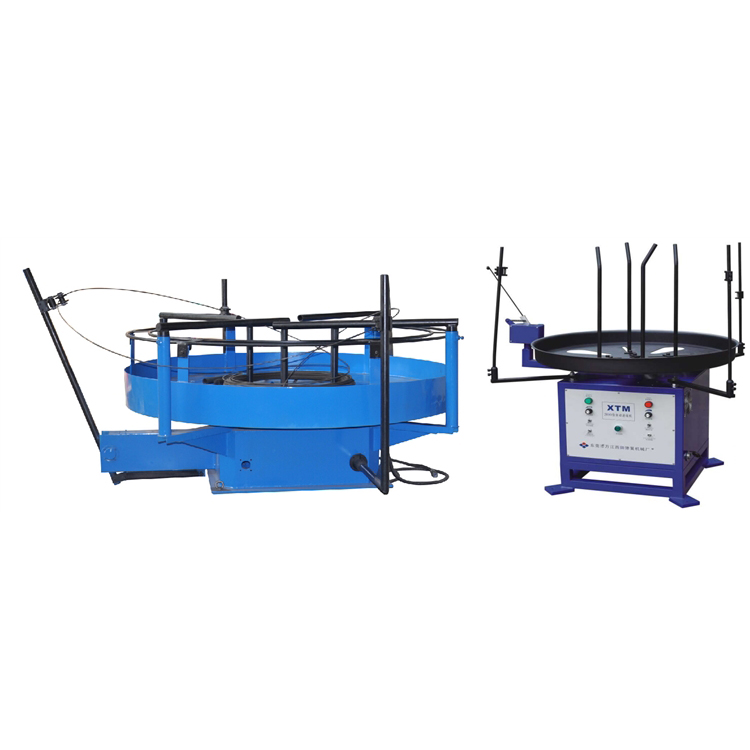

ZL series Automatic decoiler

Specifications of ZL series Automatic decoiler


Model No.

ZL-100

ZL-500

ZL-1000

ZL-2000

ZL-2500

Loading weight

100 kg

500 kg

1000 kg

2000 kg

2500 kg

Coil diameter

850

1500

1800

2500

2500

Feeding rpm

0-60

0-60

0-60

0-60

0-60

Length

1500

1500

2000

2500

2800

Width

850

1500

1800

2500

2500

Height

980

980

1200

1200

1300


Advantages of ZL Series Automatic decoiler


1)Using imported transducer for speed regulation, the speed can be adjusted freely.

2)  Accept signal of main frame synchronously, act along with the main frame.

3)  With secondary speeding up function,coordinating elasticly with the main frame

4)  With function of positive and negative going motion,select freely wire-feeding with left-handed or right-handed rotation.

5)  The function of work/adjust is convenient to adjust the main frame.

6)With anomaly diagnostic function. They will shut off automatically when wire feeding abnormally.

For more information, contact us.
