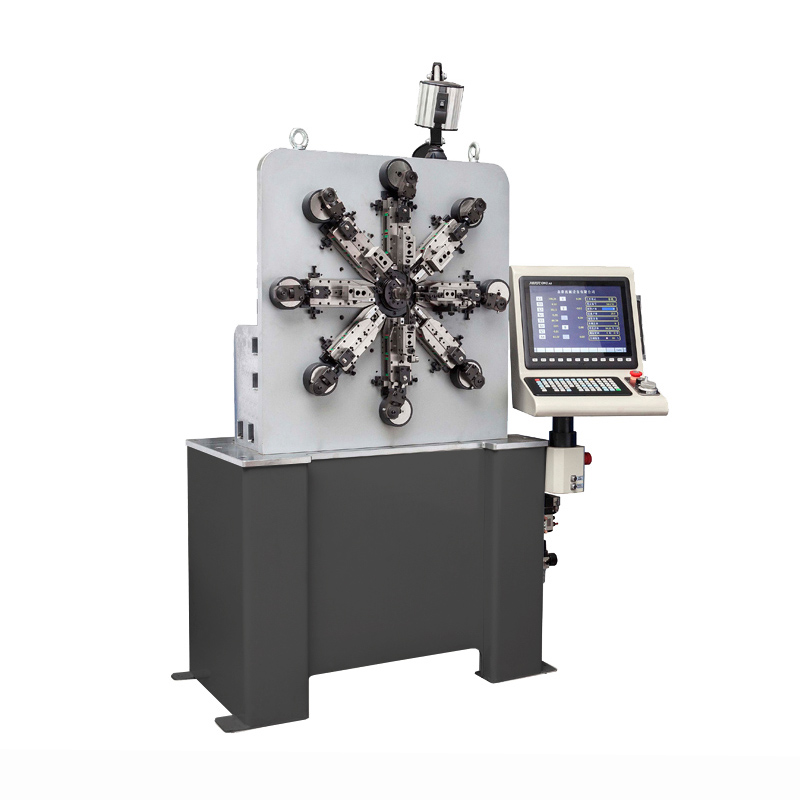

CFM-1120CNC Camless Spring Forming machine


  • CFM-1120CNC Eleven axis camless CNC Spring Forming Machine

    Wire diameter:0.3-2.3mm


LEARN MORE
  • Product detail
  • Range of application


Specification of CFM-1120CNC Camless Spring Forming Machine :


Axis count:11 axis
Wire size:¢0.20~2.3mm
Outside diameter:¢45mm
Wire feed motor:2.7kw
Sliding arm motor×8:1kw
Quill motor:1kw
Spinner motor:0.75kw
Computer display:Chinese/English
Max wire feed:99999.99mm
Min wire feed:0.02mm
Dimensions:1550*1100*1700mm
Weight:950kg
Power ac:3-phase 380v 50/60Hz
